GDONU300-4GWR Technical Specifications

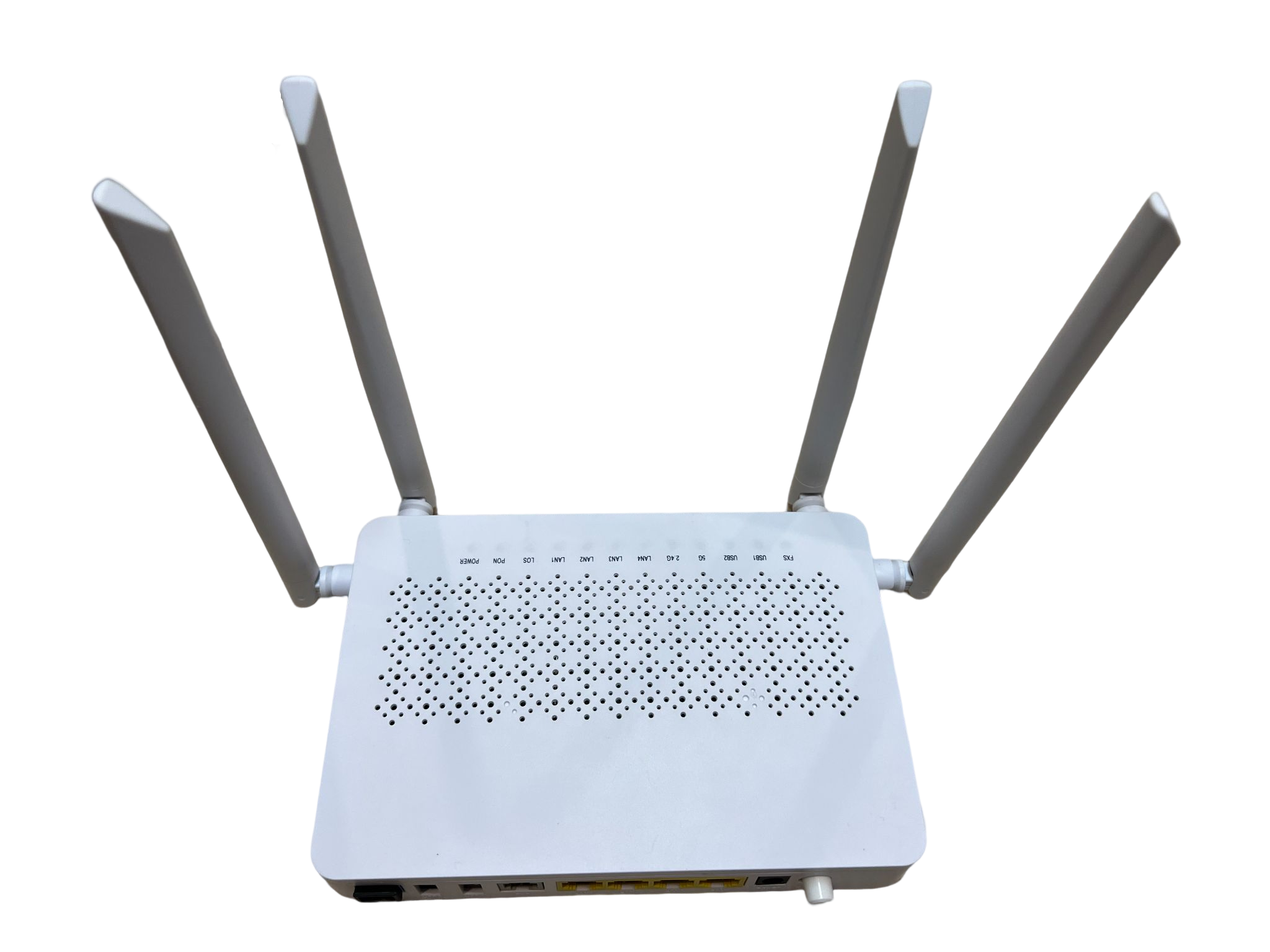

GDONU300-4GWR is launched to be oriented to multi-service integration network as an optical network unit device by ...
GDONU300-4GWR Technical Specifications
|
Dimension |
220mm x 150mm x 32mm (Without antenna) |
|
Weight |
420g |
|
Working environment temperature |
0℃～+40℃ |
|
Working environment humidity |
5% RH～95% RH, non-condensing |
|
Power adapter input level |
90V～270V AC，50/60Hz |
|
Device power supply |
11V～14V DC，2 A |
|
Static power consumption |
7.5 W |
|
Maximum power consumption |
18 W |
|
Interfaces |
1POTS+4GE+Wi-Fi(2.4G+5G)+USB |
|
Indicator light |
POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV |
|
PON interface |
? Class B+ ? -27dBm receiver sensitivity ? Wavelength：upstream 1310nm，downstream 1490nm ? Support WBF ? Flexible mapping between GEM Port and TCONT ? Authentication method: SN/password/LOID (GPON) ? Two-way FEC (Forward error correction) ? Support DBA for SR and NSR |
|
Ethernet port |
? Stripping based on VLAN Tag/Tag for Ethernet port. ? 1:1 VLAN/N:1 VLAN/VLAN Pass-through ? QinQ VLAN ? MAC address limit ? MAC address learning |
|
POTS interface |
? Maximum number for one port that joint-up connecting in parallel with Telephone：4 REN ? Support G.711A/u，G.729a/b，G.722 CODEC ? Support T.30/T.38 mode for fax ? DTMF ? Emergency calls protocol |
|
WLAN |
? IEEE 802.11 b/g/n ? 2×2 MIMO ? Antenna gain：5dBi ? WMM (Wi-Fi multi media) ? Multiple SSID multiple ? WPS |
|
USB interface |
? USB2.0 ? Network storage according to FTP |
